REACH | RoHS | CE
Application
Tubular braids are used for covering and shielding. They protect the cables and electrical conductors against interferences and to realize a safe data transfer.
Material
Annealed electrolytic grade copper wire. Wire Dia - 0.16 to 0.3 mm
Test Voltage
3000 V
Surface
Plain copper or Tinned
Packing
In rings or spools or wooden drums.

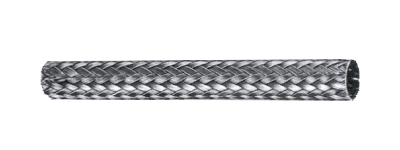

Tubular Braids
Cross-Section (mm²) |
No. of Wires |
Strand Diameter (mm) |
Width (mm) |
Thickness (mm) |
7.90 |
36 X 7 |
0.2 |
8.5 |
25 |
10.20 |
36 X 9 |
0.2 |
10 |
27 |
12.45 |
36 X 11 |
0.2 |
12 |
29 |
35.80 |
36 X 14 |
0.3 |
25 |
70 |
51.10 |
48 X 15 |
0.3 |
25 |
90 |
Tinned Copper Earthing Braids
Cross-Section (mm²) |
No. of Wires |
Strand Diameter (mm) |
Width (mm) |
19 |
16 X 16 |
0.3 |
7.20 |
37 |
16 X 32 |
0.3 |
11.1 |
We can also produce special designs in diameters and constructions according to customer requirement.
