REACH | RoHS | CE
Application
These cables are used for internal wiring of switchboards, electronic and electrical
equipment, e. g. households, radio of televisions,
monitor and control desks.
Technical Data
Standard : UL - Std. 758 , CSA C 22.2 No. 210
Nominal
Voltage : 300V
Test Voltage : 2000V
Test
Voltage (Spark Test)
AWG 26-20 : 4kV, AWG 10 -18 :
5kV
Temperature Range : Flexible -5°C to +80°C. Fixed
installation -20°C to + 80°C
CSA - AWM I A/B
Bending Radius :
Flexing 10 x cable ø. Fixed installation 5 x cable ø

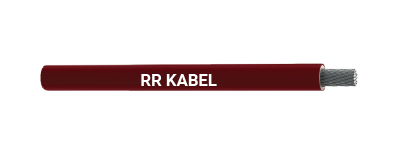

Cable Construction
Annealed plain or tinned stranded copper conductor.
PVC - core insulation
according to UL - Standard 1581, Class 43 Tab. 50.182, heat and damp resistant.
Properties
Conditionally resistant to oils, solvents, acids and dyes.
PVC self -
extinguishing and flame retardant, test method to UL VW-1 and CSA FT 1 / FT 2
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of
‘xx’) for the insulation colour required:
01 – green, 02 – black, 03 – red, 04 –
blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 -Violet, 09 – brown, 10 –
orange, 11 – pink, 12 – grey,
13 – light blue.
| Part Number | AWG No. | No. of Cores & Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx Cable Weight (kg/km) |
|---|---|---|---|---|---|
| 06030101xx30 | 26 | 1 x 0.14 | 1.3 | 1.4 | 3.0 |
| 06030102xx30 | 24 | 1 x 0.21 | 1.5 | 2.1 | 4.3 |
| 06030103xx30 | 22 | 1 x 0.33 | 1.6 | 3.5 | 5.8 |
| 06030104xx30 | 20 | 1 x 0.52 | 1.9 | 5.2 | 8.0 |
| 06030105xx30 | 18 | 1 x 0.82 | 2.2 | 8.3 | 12 |
| 06030106xx30 | 16 | 1 x 1.32 | 2.5 | 13.5 | 18.4 |
