REACH | RoHS | CE
Application

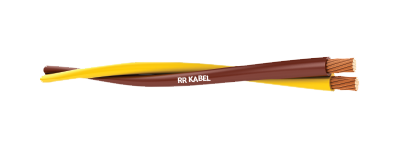

These are unsheathed twisted wires used in automobiles
Standard
In accordance to ISO 6722-1
Temperature Range (3000 Hrs)
-40°C to +105°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP1 according to DIN EN 13602, bare or tinned copper construction acc. to ISO 6722-1 PVC with properties according to according to ISO 6722-1, Class B
Special Properties
Higher heat resistance. Tinned copper conductor. Other lay lengths available on request.
Packing
Available in 100 mtrs. Longer length available in spools or wooden drums.
Cable Design Parameter
|
No. of Cores x Nom. Cross- Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
Min. Insulation Thickness (mm) |
Core Diameter (Max.) (mm) |
Lay Length (Nom.) (mm) |
Outer Diameter (Max.)(mm) |
Approx. Weight (Kg/Km) |
|
2x0.35 |
7 |
0.26 |
0.8 |
52.0 |
0.20 |
1.3 |
16 |
2.6 |
9.0 |
|
2x0.35 |
7 |
0.26 |
0.8 |
52.0 |
0.20 |
1.3 |
20 |
2.6 |
9.0 |
|
2x0.35 |
7 |
0.26 |
0.8 |
52.0 |
0.20 |
1.3 |
30 |
2.6 |
9.0 |
|
2x0.5 |
19 |
0.19 |
1.0 |
37.1 |
0.22 |
1.6 |
15 |
3.2 |
13.0 |
|
2x0.5 |
19 |
0.19 |
1.0 |
37.1 |
0.22 |
1.6 |
30 |
3.2 |
13.0 |
|
2x0.5 |
16 |
0.21 |
1.0 |
37.1 |
0.22 |
1.6 |
20 |
3.2 |
13.0 |
|
2x0.5 |
16 |
0.21 |
1.0 |
37.1 |
0.22 |
1.6 |
30 |
3.2 |
13.0 |
|
3x0.5 |
19 |
0.19 |
1.0 |
37.1 |
0.22 |
1.6 |
30 |
3.5 |
20.0 |
|
3x0.5 |
16 |
0.21 |
1.0 |
37.1 |
0.22 |
1.6 |
40 |
3.5 |
20.0 |
|
2x0.75 |
24 |
0.23 |
1.2 |
24.7 |
0.24 |
1.9 |
30 |
3.8 |
18.0 |
|
2x0.75 |
19 |
0.21 |
1.2 |
24.7 |
0.24 |
1.9 |
30 |
3.8 |
18.0 |
|
3x0.75 |
19 |
0.23 |
1.2 |
24.7 |
0.24 |
1.9 |
30 |
4.1 |
27.0 |
|
2x1 |
19 |
0.26 |
1.35 |
18.5 |
0.24 |
2.1 |
30 |
4.2 |
22.0 |
|
2x1 |
32 |
0.21 |
1.35 |
18.5 |
0.24 |
2.1 |
30 |
4.2 |
22.0 |
|
3x1 |
32 |
0.21 |
1.35 |
18.5 |
0.24 |
2.1 |
25 |
4.5 |
33.0 |
|
4x1 |
19 |
0.26 |
1.35 |
18.5 |
0.24 |
2.1 |
30 |
5.1 |
44.0 |
|
2x1.5 |
19 |
0.32 |
1.7 |
12.7 |
0.24 |
2.4 |
30 |
4.8 |
32.0 |
|
2x2.5 |
50 |
0.26 |
2.2 |
7.8 |
0.28 |
3.0 |
30 |
6.0 |
52.0 |
|
5x2.5 |
50 |
0.26 |
2.2 |
7.8 |
0.28 |
3.0 |
50 |
8.1 |
130.0 |
|
6x2.5 |
50 |
0.26 |
2.2 |
7.8 |
0.28 |
3.0 |
55 |
9.0 |
156.0 |
