REACH | RoHS | CE
Application
Silicone single core cables are used in high as well as extremely low temperature areas. They are used mainly in the steel producing industries, in aviation industries as well as in ship building, cement, glass and ceramic factories. These cables are halogen-free, especially suited for use in power stations.
Standards
Adapted to VDE 0250 part 1 and 502.
Technical Data
Voltage Rating : UO / U - 300 / 500V
Test Voltage
: 2000V
Temperature Range : -50°C to +180°C (up to
+ 200°C for short time with adequate ventilation)
Minimum Bending Radius
: Fixed installation: 6 x cable ø. One bend at end of core: 3 x cable ø

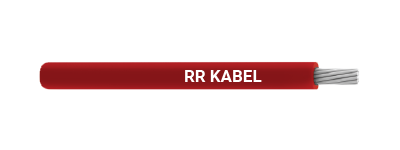

Cable Construction
Tinned copper conductor Cl. 5, to EN 60228.
Silicone core
insulation.
Type SiFF : This variant is similar to SiF with high
flexible copper strands.
*SiF and SiFF is also available with polyester yarn over
the cable.
Properties
Advantages : High ignition or flash point.
Resistant to
: High molecular oils, fats from vegetables and animals, alcohols,
plasticisers and clopenes, diluted acids, dyes and salt dissolution, oxidation
substances, tropical influences and weather, lake water, oxygen and
UV
Halogen - Free : According to IEC
60754-2
Behaviour in Fire : Flame propagation test according to
EN 60332-1-2
Cable Design Parameters
Kindly complete the part numbers for SiF and SiFF by adding the suffix (in place of
‘xx’) for the colour required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 –
yellow, 07 – white, 09 – brown, 10 – orange, 12 – grey.
| Part Number | Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SiF | 08010101xx80 | 0.25 | 1.9 | 2.4 | 5.5 | |||||
| 08010102xx80 | 0.5 | 2.1 | 4.5 | 8.6 | ||||||
| 08010103xx80 | 0.75 | 2.4 | 6.7 | 11.8 | ||||||
| 08010104xx80 | 1.0 | 2.5 | 9.0 | 13.5 | ||||||
| 08010105xx80 | 1.5 | 2.8 | 12.9 | 18.5 | ||||||
| 08010106xx80 | 2.5 | 3.5 | 21.5 | 30.0 | ||||||
| 08010107xx80 | 4.0 | 4.2 | 34.1 | 47.3 | ||||||
| 08010108xx80 | 6.0 | 5.2 | 51.2 | 71.1 | ||||||
| 08010109xx80 | 10.0 | 7.0 | 87.1 | 119.4 | ||||||
| 008010110xx80 | 16.0 | 8.4 | 145.1 | 187.7 | ||||||
| 08010111xx80 | 25.0 | 9.9 | 225.8 | 289.6 | ||||||
| 08010112xx80 | 35.0 | 11.0 | 317.9 | 398.3 | ||||||
| 08010113xx80 | 50.0 | 12.5 | 456.2 | 559.7 | ||||||
| 08010114xx80 | 70.0 | 14.5 | 644.6 | 765.8 | ||||||
| SiFF | 08020101xx80 | 0.25 | 1.9 | 2.5 | 6 | |||||
| 08020102xx80 | 0.5 | 2.1 | 4.9 | 8 | ||||||
| 08020103xx80 | 0.75 | 2.5 | 7.3 | 12 | ||||||
| 08020104xx80 | 1.0 | 2.7 | 9.8 | 15 | ||||||
| 08020105xx80 | 1.5 | 3.0 | 14.7 | 21 | ||||||
| 08020106xx80 | 2.5 | 3.8 | 24.5 | 35 | ||||||
| 08020107xx80 | 4.0 | 4.6 | 39.2 | 54 | ||||||
| 08020108xx80 | 6.0 | 5.7 | 53.9 | 78 | ||||||
| 08020109xx80 | 10.0 | 7.6 | 89.8 | 133 | ||||||
*For the variants with polyester yarn braid i.e., SiF-PYB & SiFF-PYB, the
insulated core colour shall be white.
Kindly complete the part numbers for these
cables by adding the suffix (in place of ‘z’) for the colour of polyester yarn
required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 07 – white.
| Part Number | Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SiF-PYB | 08010101078p | 0.25 | 2.3 | 2.4 | 5.5 | |||||
| 08010102078p | 0.5 | 2.5 | 4.5 | 8.6 | ||||||
| 08010103078p | 0.75 | 2.8 | 6.7 | 11.8 | ||||||
| 08010104078p | 1.0 | 2.9 | 9.0 | 13.5 | ||||||
| 08010105078p | 1.5 | 3.2 | 12.9 | 18.5 | ||||||
| 08010106078p | 2.5 | 3.9 | 21.5 | 30.0 | ||||||
| 08010107078p | 4.0 | 4.6 | 34.1 | 47.3 | ||||||
| 08010108078p | 6.0 | 5.6 | 51.2 | 71.1 | ||||||
| 08010109078p | 10.0 | 7.4 | 87.1 | 119.4 | ||||||
| 08010110078p | 16.0 | 8.8 | 145.1 | 187.7 | ||||||
| 08010111078p | 25.0 | 10.2 | 225.8 | 289.6 | ||||||
| 08010112078p | 35.0 | 11.4 | 317.9 | 398.3 | ||||||
| 08010113078p | 50.0 | 12.8 | 456.2 | 559.7 | ||||||
| 08010114078p | 70.0 | 14.9 | 644.6 | 765.8 | ||||||
| SiFF-PYB | 08020101078p | 0.25 | 2.3 | 2.4 | 6 | |||||
| 08020102078p | 0.5 | 2.5 | 4.9 | 8 | ||||||
| 08020103078p | 0.75 | 2.9 | 7.3 | 12 | ||||||
| 08020104078p | 1.0 | 3.1 | 9.8 | 15 | ||||||
| 08020105078p | 1.5 | 3.4 | 14.7 | 21 | ||||||
| 08020106078p | 2.5 | 4.2 | 24.5 | 35 | ||||||
| 08020107078p | 4.0 | 5.0 | 39.2 | 54 | ||||||
| 08020108078p | 6.0 | 6.1 | 53.9 | 78 | ||||||
| 08020109078p | 10.0 | 8.0 | 89.8 | 133 | ||||||
For current ratings refer table no. 14-1.
