REACH | RoHS | CE | CPR

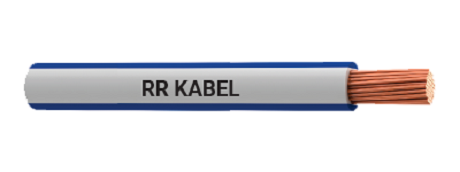

Description
India’s 1st REACH and RoHS Compliant Cable | Flame Retardant Low Smoke Low Halogen.
- REACH, ROHS, CE and CPR Compliant
- Anti-Rodent, Anti-Termite
- 100% Electrolytic Copper
- More than 101% Conductivity
Application
Suitable for use in conduit and for fixed, protected installation particularly suitable for wiring in fire and explosion prone areas, chemical factories, densely wired areas, public buildings, schools, hospitals, commercial complexes, theatres, etc.
Technical Data
Approvals : IS 694 marked,
FIA/TAC
Voltage Grade : Up to and including
1100V
Conductor : Thin strands of electrolytic
copper are multi-drawn for uniformity of resistance, dimension and
flexibility
Insulation : Specially formulated
flame retardant low smoke low halogen compound to restrict the spread of flames in
fire situation. The smoke emitted by the burning cable is considerably low compared
to traditional cables. This ensures improved visibility for evacuation of trapped
victims and facilitates fire fighting operation.
Insulation
Conformity : IS 5831 Type A/D FR-LSH
70°C
Colours : Entire cable has white base and
a double strip of Green, Black, Red, Yellow, Blue, Grey, running along the cable
length
Marking : The cables are printed with
the marking of "FLAMEX FR-LSH’
Packing : 90
mtr. coils packed in protective cartons.
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of
‘xx’) for the colour required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 –
yellow, 06 – grey.
Part Number | Nominal Cross Sectional Area (Sq. mm) | Nominal Insulation Thickness (mm) | Number *Nominal Dia. of Strands | Approx. Overall Diameter (mm) | Max. DC Conductor Resistance at 20°C (Ω/km) | Current Rating (Amps) | |
---|---|---|---|---|---|---|---|
Casing | Concealed | ||||||
01020101xx50 | 1 | 0.7 | 14/0.3 | 2.7 | 18.1 | 14 | 13 |
01020102xx50 | 1.5 | 0.7 | 22/0.3 | 3.0 | 12.1 | 18 | 16 |
01020103xx50 | 2.5 | 0.8 | 36/0.3 | 3.7 | 7.41 | 24 | 20 |
01020104xx50 | 4** | 0.8 | 56/0.3 | 4.1 | 4.95 | 30 | 26 |
*Conductor as per IS 8130. **Insulation Type D as per IS 5831.
Properties
Test | Test Method | Values |
---|---|---|
Limited Oxygen Index | IS 10810 P – 58 | > 29% |
Limited Temperature Index | IS 10810 P – 64 | > 250OC |
Smoke Density (Light Absorption) | IS 13360 P – 6/Sec 9 | < 60% |
Acid Gas Generation | IS 10810 P – 59 | < 20% |
