REACH | RoHS | CE
Application

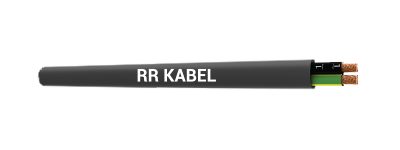

These cables are used in machine tools, industrial machineries, measurement control, and electrical applications. These are suitable for oily and wet areas within machinery and production shop floors that are subjected to normal mechanical stress. JZ-30400 P is resistant to contact with mineral oil based lubricants, diluted acids, aqueous alkaline and other chemical media. Outdoor use is possible within the indicated temperature range.
Technical Data
Standard : Adapted to EN 50525-2-51
Nominal Voltage
: UO / U 300 / 500 V
Insulation Resistance
: Min. 20 GΩ x cm
Temperature Range : Flexing -5°C
to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius
: Flexing approx 12.5 x cable ø. Fixed installation approx. 4 x cable ø
Test Voltage : 4000V
Cable Construction
Bare copper, fine wire conductors according to EN 60228 cl. 5.
Core insulation of
special PVC TI2 EN 50363-3.
Black core with continuous white numbering according
to DIN VDE 0293.
Cores stranded in layers with optimal lay-length.
Special
polyurethane outer sheath (PUR).
Sheath color : Grey (RAL 7001).
Properties
Extensively oil resistant.
Abrasion and notch resistant.
Low adhesive
surface.
Resistant to hydrolysis and microbes. UV resistant to ASTM G 154.
Cable Design Parameters
| Part Number | No. of Cores & Nominal Cross Sectional Area(Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|
| 040100201050 | 2 x 0.5 | 4.8 | .7 | 30 |
| 040100311050 | 3G 0.5 | 5.1 | 3.0 | 37 |
| 040100301050 | 3 x 0.5 | 5.1 | 3.0 | 37 |
| 040100411050 | 4G 0.5 | 5.6 | 7.4 | 46 |
| 040100401050 | 4 x 0.5 | 5.6 | 7.4 | 46 |
| 040100511050 | 5G 0.5 | 6.0 | 1.7 | 55 |
| 040100501050 | 5 x 0.5 | 6.0 | 1.7 | 55 |
| 040100711050 | 7G 0.5 | 6.7 | 0.4 | 72 |
| 040100701050 | 7 x 0.5 | 6.7 | 0.4 | 72 |
| 040101011050 | 10G 0.5 | 8.8 | 3.5 | 115 |
| 040101211050 | 12G 0.5 | 8.9 | 2.2 | 126 |
| 040101811050 | 18G 0.5 | 10.5 | 78.2 | 180 |
| 040102511050 | 25G 0.5 | 12.9 | 108.6 | 263 |
| 040103411050 | 34G 0.5 | 14.3 | 147.8 | 337 |
| 040104211050 | 42G 0.5 | 16.6 | 182.5 | 437 |
| 040100201075 | 2 x 0.75 | 5.3 | 13.0 | 39 |
| 040100311075 | 3G 0.75 | 5.6 | 19.6 | 48 |
| 040100301075 | 3 x 0.75 | 5.6 | 19.6 | 48 |
| 040100411075 | 4G 0.75 | 6.1 | 26.1 | 59 |
| 040100401075 | 4 x 0.75 | 6.1 | 26.1 | 59 |
| 040100511075 | 5G 0.75 | 6.9 | 32.6 | 76 |
| 040100501075 | 5 x 0.75 | 6.9 | 32.6 | 76 |
| 040100711075 | 7G 0.75 | 7.6 | 45.6 | 97 |
| 040100701075 | 7 x 0.75 | 7.6 | 45.6 | 97 |
| 040101011075 | 10G 0.75 | 10.0 | 5.2 | 156 |
| 040101211075 | 12G 0.75 | 10.1 | 8.2 | 171 |
| 040101811075 | 18G 0.75 | 11.9 | 17.3 | 247 |
| 040102511075 | 25G 0.75 | 14.6 | 63.0 | 357 |
| 040103411075 | 34G 0.75 | 15.7 | 21.6 | 446 |
| 040104111075 | 41G 0.75 | 17.4 | 67.3 | 543 |
| 040100200001 | 2 x 1 | 5.6 | 17.4 | 46 |
| 040100310001 | 3G 1 | 6.0 | 26.1 | 59 |
| 040100300001 | 3 x 1 | 6.0 | 26.1 | 59 |
| 040100410001 | 4G 1 | 6.8 | 34.8 | 77 |
| 040100400001 | 4 x 1 | 6.8 | 34.8 | 77 |
| 040100510001 | 5G 1 | 7.5 | 43.5 | 93 |
| 040100500001 | 5 x 1 | 7.5 | 43.5 | 93 |
| 040100710001 | 7G 1 | 8.9 | 60.8 | 132 |
| 040101010001 | 10G 1 | 10.8 | 86.9 | 191 |
| 040101210001 | 12G 1 | 11.1 | 104.3 | 215 |
| 040101810001 | 18G 1 | 13.2 | 156.5 | 311 |
| 040102510001 | 25G 1 | 16.2 | 217.3 | 452 |
| 040103410001 | 34G 1 | 18.1 | 295.5 | 587 |
| 040104110001 | 41G 1 | 19.7 | 356.4 | 700 |
| 040100201105 | 2 x 1.5 | 6.3 | 25.5 | 61 |
| 040100311105 | 3G 1.5 | 6.7 | 38.2 | 78 |
| 040100301105 | 3 x 1.5 | 6.7 | 38.2 | 78 |
| 040100411105 | 4G 1.5 | 7.3 | 50.9 | 98 |
| 040100401105 | 4 x 1.5 | 7.3 | 50.9 | 98 |
| 040100511105 | 5G 1.5 | 8.2 | 63.7 | 123 |
| 040100501105 | 5 x 1.5 | 8.2 | 63.7 | 123 |
| 040100711105 | 7G 1.5 | 9.0 | 89.1 | 160 |
| 040100701105 | 7 x 1.5 | 9.0 | 89.1 | 160 |
| 040101211105 | 12G 1.5 | 12.1 | 152.8 | 280 |
| 040101811105 | 18G 1.5 | 14.5 | 229.2 | 412 |
| 040102511105 | 25G 1.5 | 17.2 | 318.3 | 576 |
| 040103411105 | 34G 1.5 | 19.6 | 432.9 | 766 |
| 040104111105 | 41G 1.5 | 21.3 | 522.0 | 915 |
| 040100201205 | 2 x 2.5 | 7.6 | 42.4 | 93 |
| 040100311205 | 3G 2.5 | 8.3 | 63.7 | 124 |
| 040100411205 | 4G 2.5 | 9.1 | 84.9 | 157 |
| 040100511205 | 5G 2.5 | 10.2 | 106.1 | 196 |
| 040100711205 | 7G 2.5 | 11.2 | 148.5 | 256 |
| 040101211205 | 12G2.5 | 14.8 | 254.6 | 443 |
| 040100410004 | 4G 4 | 10.8 | 135.0 | 234 |
| 040100510004 | 5G 4 | 12.1 | 168.7 | 292 |
| 040100710004 | 7G 4 | 13.3 | 236.2 | 383 |
| 040100410006 | 4G 6 | 13.0 | 202.4 | 345 |
| 040100510006 | 5G 6 | 14.5 | 253.1 | 430 |
| 040100710006 | 7G 6 | 16.0 | 354.3 | 566 |
| 040100410010 | 4G 10 | 15.5 | 344.7 | 539 |
| 040100510010 | 5G 10 | 17.1 | 430.8 | 666 |
| 040100710010 | 7G 10 | 19.0 | 603.2 | 888 |
| 040100410016 | 4G 16 | 18.8 | 574.1 | 852 |
* G = With green/yellow earth core
X = Without
green/yellow earth core
