Application
Speaker cables are highly recommended for use in connecting speakers, public address system for clear and distortion free voice with low dB loss.
Cable Construction

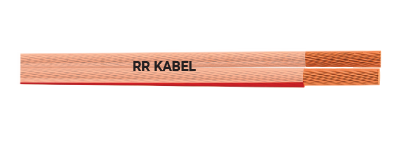

The cables are manufactured with bright annealed plain flexible electrolytic grade
copper conductor, bunched compactly, insulated with specially formulated PVC
compound. Each core is uniquely designed for easy identification. In order to offer
uniform capacitance throughout length the distance between the two conductors is
maintained uniformly.
Colour Availability : Transparent / black
with red tracer for polarity identification.
Packing : The
delivery length is available in 90 mtr. coils
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of
‘xx’) for colour required:
00 – Transparent, 02 – black
Part Number | Equivalent AWG | Nominal Cross Sectional Area (Sq. mm) | Max. DC Conductor Resistance at 20°C (Ω/km) | Maximum Overall Dimensions (W X H) (mm) |
---|---|---|---|---|
01090101xx10 | 22 | 0.5 | 39.0 | 4.2 x 2.1 |
01090102xx10 | 19 | 0.75 | 26.0 | 4.7 x 2.4 |
01090103xx10 | 18 | 1 | 19.5 | 5.7 x 2.9 |
01090104xx10 | 16 | 1.5 | 13.3 | 6.0 x 3.0 |
01090105xx10 | 14 | 2.5 | 7.98 | 7.0 x 3.6 |
01090106xx10 | 12 | 4 | 4.95 | 8.4 x 4.1 |
01090107xx10 | 10 | 6 | 3.30 | 9.6 x 4.7 |
Recommended length
Wire Size | 2Ω load | 4Ω load | 6Ω load | 8Ω load |
---|---|---|---|---|
22 AWG | 3ft (0.9m) | 6ft (1.8m) | 9ft (2.7m) | 12ft (3.6m) |
19 AWG | 5ft (1.5m) | 10ft (3m) | 15ft (4.5m) | 20ft (6m) |
18 AWG | 8ft (2.4m) | 16ft (4.9m)) | 24ft (7.3m) | 32ft (9.7m) |
16 AWG | 12ft (3.6m) | 24ft (7.3m) | 36ft (11m) | 48ft (15m) |
14 AWG | 20ft (6.1m) | 40ft (12m) | 60ft (18m) | 80ft (24m) |
12 AWG | 30ft (9.1m) | 60ft (18m) | 90ft (27m) | 120ft (36m) |
10 AWG | 50ft (15m) | 100ft (30m) | 150ft (46m) | 200ft (61m) |
