REACH | RoHS | CE
Application
These cables are with composite construction for supply and control between frequency
converter and motor.
These are also used as connecting cable between servo
controller and motor plant engineering.
One common cable for multiple circuits.
Technical Data
Standard : Adapted toVDE 0812 / 0250 / 0281
Nominal
Voltage : Supply cores : 600 / 1000V
Control core pairs
: 250V
Insulation Resistance : > 20 GΩ x
cm
Temperature Range : Flexing -5°C to +70°C
Fixed
installation -30°C to +70°C
Minimum Bending Radius : Flexing 20
x cable ø Fixed installation 6 x cable ø
Test Voltage : Supply
cores : C/C 4000V & C/S : 2000V
Control cores : C/C :
1500V, C/S : 750V

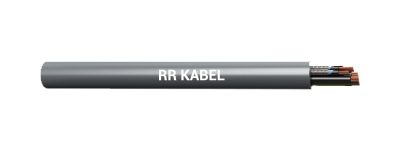

Cable Construction
Bare copper, fine wire conductors according to EN 60228 cl. 5.
Supply
cores : black with white numbers according to VDE 0293 and GN-YE
protective conductor.
Control pairs 0.34 Sq. mm, colour coded-WH/BR, GN/YE.
Control pairs 0.5 Sq. mm and above - Black coloured with white numbers to VDE
0293.
Control pair with laminated aluminium film and tinned copper
braiding.
The model with one control pair does not have laminated aluminium
foil
PVC outer sheath, grey (RAL 7001).
Properties
Flame retardant according to EN 60332-1-2.
Low mutual capacitance.
For use
in dry, wet and damp interiors.
SERVO 55700 is also available with UV resistance
property as SERVO 55700 UV.
Kindly add 'UV' after the part no. for UV resistant
cable.
UV resistant to ASTM G 154.
Cable Design Parameters
| Part Number | No. of Cores & Nominal Cross Sectional Area(Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|
| 040601010113 | 4 G 0.75 + 2 x (2 x 0.34) | 9.5 | 59.9 | 124 |
| 040601020113 | 4 G 1.5 + 2 x (2 x 0.75) | 12.1 | 103.0 | 195 |
| 040601030113 | 4 G 2.5 + (2 x 2 x 0.75) | 13.9 | 127.6 | 258 |
| 040601040113 | 4 G 4 + (2 x 0.75 + 2 x 1) | 15.8 | 182.8 | 351 |
| 040601050113 | 4 G 6 + (2 x 0.75 + 2 x 1) | 16.7 | 250.3 | 435 |
| 040601060113 | 4 G 16 + (2 x 2 x 1) | 23.5 | 626.3 | 1052 |
| 040601070113 | 4 G 1.5 +(2 x 0.75) | 11.7 | 76.9 | 174 |
| 040601080113 | 5 G 1.5 +(2 x 0.75) | 12.7 | 89.7 | 203 |
| 040601090113 | 7 G 1.5 +(2 x 0.75) | 12.4 | 115.1 | 203 |
| 040601100113 | 4 G 2.5 +(2 x 0.75) | 13.1 | 110.9 | 239 |
| 040601110113 | 7 G 2.5 +(2 x 0.75) | 15.2 | 174.6 | 335 |
Note :
* G = With green/yellow earth core
X = Without green/yellow earth core
