REACH | RoHS | CE
Application

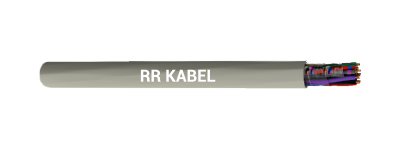

LiYY (TP) is applicable in the short runs and tight spaces, where the main requirements are smaller outer diameter and bending radii. The cable ideally meets these requirements.
Technical Data
Standard: Based on VDE 0812
Voltage Grade (Not for power
installation): 0.14 mm² = 350 V; >/= 0.25 mm² = 500
V
Insulation Resistance: Min. 20 GΩ x cm
Temperature
Range: Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius: For flexible use 10 x cable
ø
Test Voltage: Up to 0.25 mm² = 1200 V. From 0.34 mm² = 2000 V
Breakdown Voltage: Up to 0.25 mm² = 2400 V From 0.34 mm² = 4000
V
Mutual Capacitance (approx.): Up to 0.5 mm² - 120nF/km Above
0.5 mm² - 160nF/km
Inductance: Approx. 0.65mH/km
Cable Construction
Bare copper, fine wire conductors stranded according to DIN VDE 0295
Conductor
make-up for
0.14 mm² = 18 x 0.10 mm.
0.25 mm² = 14 x 0.15 mm.
0.34 mm² = 19
x 0.15 mm.
Core insulation of special PVC TI2 EN 50363-3.
Core colours as per
DIN 47100 (Refer table no. 2-1).
Pairs stranded in layers with optimal
lay-length.
Plastic foil wrapping over laid up pairs.
Outer sheath of special
PVC, TM2 to EN 50363-4.1.
Colour grey (RAL 7032).
Properties
PVC self-extinguishing and flame retardant according to EN 60332-1-2.
Cable Design Parameters
Part Number | No. of Pairs & Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx Cable Weight (kg/km) |
---|---|---|---|---|
50200221014 | 2 x 2 x 0.14 | 4.95 | 5.13 | 26.82 |
50200321014 | 3 x 2 x 0.14 | 5.02 | 7.7 | 31.61 |
50200421014 | 4 x 2 x 0.14 | 5.53 | 10.26 | 38.55 |
50200521014 | 5 x 2 x 0.14 | 5.98 | 12.83 | 45.25 |
50200621014 | 6 x 2 x 0.14 | 6.38 | 15.39 | 51.77 |
50201021014 | 10 x 2 x 0.14 | 7.73 | 25.65 | 76.76 |
50201221014 | 12 x 2 x 0.14 | 8.3 | 30.79 | 88.84 |
50201621014 | 16 x 2 x 0.14 | 9.32 | 41.05 | 112.47 |
50200221025 | 2 x 2 x 0.25 | 6.16 | 8.98 | 40.21 |
50200321025 | 3 x 2 x 0.25 | 6.26 | 13.47 | 48.84 |
50200421025 | 4 x 2 x 0.25 | 6.96 | 17.96 | 60.62 |
50200621025 | 6 x 2 x 0.25 | 8.13 | 26.94 | 83.26 |
50200821025 | 8 x 2 x 0.25 | 9.12 | 35.92 | 105.16 |
50201021025 | 10 x 2 x 0.25 | 9.99 | 44.9 | 126.57 |
50200221050 | 2 x 2 x 0.5 | 7.3 | 18.24 | 59.1 |
50200321050 | 3 x 2 x 0.5 | 7.43 | 27.36 | 74.31 |
50200421050 | 4 x 2 x 0.5 | 8.31 | 36.49 | 93.73 |
50200821050 | 8 x 2 x 0.5 | 11.04 | 72.97 | 168.14 |
50201021050 | 10 x 2 x 0.5 | 12.13 | 91.22 | 204.28 |
50200221075 | 2 x 2 x 0.75 | 7.8 | 27.36 | 71.94 |
50200321075 | 3 x 2 x 0.75 | 7.94 | 41.05 | 92.3 |
50200421075 | 4 x 2 x 0.75 | 8.89 | 54.73 | 117.35 |
50200821075 | 8 x 2 x 0.75 | 11.86 | 109.46 | 214 |
50201021075 | 10 x 2 x 0.75 | 13.05 | 136.82 | 261.15 |
