SiF-GL are single core silicon cables with fiber glass braid for use in high as well as extremely low temperature areas. They are used mainly in the steel producing industries, in aviation industries as well as in ship building, cement, glass and ceramic factories.
Standards
Adapted to VDE 0250 part 1 and 502.
Technical Data
Voltage Rating : UO / U - 300 / 500V
Test Voltage
: 2000V
Temperature Range : -50°C to +180°C (up to
+ 200°C for short time with adequate ventilation)
Minimum Bending Radius
: Fixed installation : 6 x cable ø. One bend at end of core 3 x cable ø
Cable Construction

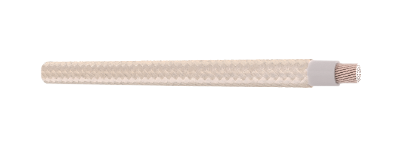

Type SiF-GL: Tinned copper conductor to EN 60228 Cl. 5.
Silicone
core insulation.
Glass - fibre braiding.
Properties
Advantages : High ignition or flash point.
Resistant to
: High molecular oils, fats from vegetables and animals, alcohols,
plasticisers and diluted acids, dyes and salt dissolution, oxidation substances,
tropical influences and weather, lake water, oxygen and UV.
Halogen -
Free : According to IEC 60754-2.
Behaviour in Fire
: Flame propagation test according to EN 60332 - 1 - 2.
Cable Design Parameters
| Part Number | Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SiF-GL | 80501010180 | 0.25 | 2.4 | 2.4 | 6 | |||||
| 80501020180 | 0.5 | 2.6 | 4.5 | 9 | ||||||
| 80501030180 | 0.75 | 2.9 | 6.7 | 12 | ||||||
| 80501040180 | 1.0 | 3.0 | 9.0 | 14 | ||||||
| 80501050180 | 1.5 | 3.3 | 12.9 | 20 | ||||||
| 80501060180 | 2.5 | 3.9 | 21.5 | 31 | ||||||
| 80501070180 | 4.0 | 4.7 | 34.1 | 48 | ||||||
| 80501080180 | 6.0 | 5.7 | 51.2 | 73 | ||||||
| 80501090180 | 10.0 | 7.5 | 87.1 | 126 | ||||||
| 80501100180 | 16.0 | 8.9 | 145.1 | 199 | ||||||
| 80501110180 | 25.0 | 10.8 | 225.8 | 305 | ||||||
| 80501120180 | 35 | 12.1 | 317.9 | 415 | ||||||
| 80501130180 | 50 | 14.1 | 456.2 | 587 | ||||||
| 80601010180 | 0.2 | 1.7 | 2.0 | 4.4 | ||||||
| SiD | 80601020180 | 0.28 | 1.8 | 2.8 | 5.4 | |||||
| 80601030180 | 0.5 | 2.0 | 5.0 | 8.1 | ||||||
| 80601040180 | 0.75 | 2.1 | 7.4 | 10.6 | ||||||
| 80601050180 | 1.0 | 2.3 | 9.9 | 13.6 | ||||||
| 80601060180 | 1.5 | 2.5 | 14.9 | 18.9 | ||||||
| 80601070180 | 2.5 | 3.2 | 24.8 | 31.3 | ||||||
| 80601080180 | 4.0 | 3.9 | 39.6 | 49 | ||||||
| 80601090180 | 6.0 | 4.4 | 59.4 | 70.3 | ||||||
| SiD-GL | 80701010180 | 0.5 | 2.4 | 5.0 | 11 | |||||
| 80701020180 | 0.75 | 2.5 | 7.4 | 14 | ||||||
| 80701030180 | 1.0 | 2.7 | 9.9 | 17 | ||||||
| 80701040180 | 1.5 | 2.9 | 14.9 | 22 | ||||||
| 80701050180 | 2.5 | 3.6 | 24.8 | 35 | ||||||
| 80701060180 | 4.0 | 4.3 | 39.6 | 53 | ||||||
| 80701070180 | 6.0 | 4.8 | 59.4 | 74 | ||||||
