REACH | RoHS | CE
Application
The cables are suitable for power and lighting circuits and building wiring suitable
for use in semi flush exposed conduits, embedded
conduits and in closed
installation ducts. Ideal for internal wiring of appliance.
Standard
BS 7889.
Technical Data
Voltage Rating : 1.5 mmsquare to 630 mmsquare - 600 /
1000V
Temperature Range : -15 °C to 90°C
Minimum
Bending Radius
4.0 to 50 mmsquare : 10 X Overall diameter.
70
& 630 mmsquare : 12 X Overall diameter.
Test Voltage : 2 kV
15 min.

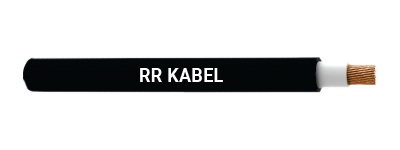

Cable Construction
Conductor
Plain annealed copper conductor : 4 mmsquare to 630
mmsquare stranded class 2 complying with BS EN 60228, HD 383, IEC
60228
Insulation : GP8 conforming to BS 7655-1.3 ( XLPE
)
Sheath : Type 9 specified in BS 7655-4.2
Insulation
Colour : Natural
Sheath Colour : Black
Cable Design Parameters
Part Number | Nominal Cross Sectional Area (Sq. mm) | Nominal Insulation Thickness (mm) | Nominal Sheath Thickness (mm) | Approx Overall Diameter (mm) | Approx. Net Weight (kg/km) |
---|---|---|---|---|---|
011600100004 | 4 | 0.70 | 1.40 | 8.0 | 107 |
011600100006 | 6 | 0.70 | 1.40 | 8.5 | 132 |
011600100010 | 10 | 0.70 | 1.40 | 9.5 | 181 |
0116001000160 | 16 | 0.70 | 1.40 | 10.5 | 247 |
011600100025 | 25 | 0.90 | 1.40 | 12.0 | 358 |
011600100035 | 35 | 0.90 | 1.40 | 13.0 | 466 |
011600100050 | 50 | 1.00 | 1.40 | 14.0 | 545 |
011600100070 | 70 | 1.10 | 1.40 | 16.0 | 765 |
011600100095 | 95 | 1.10 | 1.50 | 18.0 | 1022 |
011600100120 | 120 | 1.20 | 1.50 | 20.0 | 1267 |
011600100150 | 150 | 1.40 | 1.60 | 22.0 | 1556 |
011600100185 | 185 | 1.60 | 1.60 | 24.0 | 1928 |
011600100240 | 240 | 1.70 | 1.70 | 27.0 | 2501 |
011600100300 | 300 | 1.80 | 1.80 | 29.0 | 3108 |
011600100400 | 400 | 2.00 | 1.90 | 32.0 | 3923 |
011600100500 | 500 | 2.20 | 2.00 | 36.0 | 4999 |
011600100630 | 630 | 2.40 | 2.20 | 40.0 | 6414 |
