REACH | RoHS | CE
Application
Absolute disturbance-free data transfer both for installed terminals in all areas of medicine and data technology. Also suitable for use in machine tool and steel producing industries, traffic signal systems, assembly lines and food processing.
Technical Data
Standard: Based on VDE 0812
Voltage Grade (Not for power
installation) : Max. 250 V
Test Voltage: Core /
core 2000 V. Core / screen 1000V
Insulation Resistance: Min.
5000 GΩ x cm
Mutual Capacitance
0.22 mm² max., 70
nF/km
0.34 mm² max., 70 nF/km
0.5 mm² max., 75 nF/km
1 mm² max., 85 nF/km
Inductance: Approx. 0.4 mH/km
Cross-Talk
Attenuation: Min. 80 dB up to 1 MHZ
Characteristic
Impedance at: approx. 85 Ω (>1 MHz)
Minimum Bending
Radius: Fixed 10 x cable ø
Temperature Range:
Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

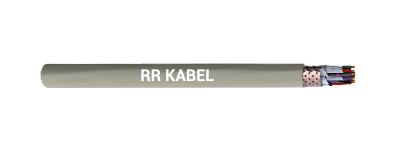

Cable Construction
Bare copper stranded 7 wire conductor.
Conductor make-up
for
0.22 mm² = 7 x 0.20 mm
0.34 mm² = 7 x 0.25 mm
0.5 mm² = 7
x 0.30 mm
0.75 mm² = 7 x 0.37 mm
1 mm² = 7 x 0.43 mm
Conductor
Resistance (loop) at 20°C
0.22 mm² = 186 Ω/km (max.)
0.34 mm² =
115 Ω/km (max.)
0.5 mm² = 78.5 Ω/km (max.)
0.75 mm² = 58 Ω/km (max.)
1
mm² = 39.2 Ω/km (max.)
Core colours as per DIN 47100 (Refer table no. 2-1 of
appendix)
PiMF: (pair in metal foil) cores twisted in pairs, foil wrapped plastic
coated aluminium foil and copper drain-wire tinned, 100% coverage.
PiMFs are
stranded in layer.
Core wrapping with plastic tapes.
Overall copper screened
braiding, 85 % coverage.
Special PVC outer sheath TM2, to EN 50363-4.1.
Colour grey (RAL 7032).
Properties
PVC self-extinguishing and flame retardant according to EN 60332-1-2.
The
twisted-pair lay-up prevents electrical unbalances within the cable and this thus
effectively suppresses cross-talking effects.
Cable Design Parameters
| Part Number | No. of Pairs & Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx Cable Weight (kg/km) |
|---|---|---|---|---|
| 50700221022 | 2 x 2 x 0.22 | 8 | 33.5 | 76 |
| 50700321022 | 3 x 2 x 0.22 | 8.3 | 47.8 | 96 |
| 50700421022 | 4 x 2 x 0.22 | 9.3 | 68.8 | 127 |
| 50700821022 | 8 x 2 x 0.22 | 12.4 | 191.2 | 286 |
| 50701021022 | 10 x 2 x 0.22 | 13.8 | 284 | 398 |
| 50700221034 | 2 x 2 x 0.34 | 8.5 | 44.1 | 90 |
| 50700321034 | 3 x 2 x 0.34 | 8.8 | 67.2 | 120 |
| 50700421034 | 4 x 2 x 0.34 | 9.9 | 97.5 | 161 |
| 50700821034 | 8 x 2 x 0.34 | 13.2 | 283.3 | 389 |
| 50701021034 | 10 x 2 x 0.34 | 14.7 | 421.5 | 548 |
| 50700221050 | 2 x 2 x 0.5 | 9 | 56.3 | 106 |
| 50700321050 | 3 x 2 x 0.5 | 9.3 | 88.8 | 146 |
| 50700421050 | 4 x 2 x 0.5 | 10.4 | 132.7 | 203 |
| 50700521050 | 5 x 2 x 0.5 | 11.4 | 185.7 | 268 |
| 50700821050 | 8 x 2 x 0.5 | 14.1 | 405.5 | 523 |
| 50701021050 | 10 x 2 x 0.5 | 15.6 | 591.3 | 731 |
| 50700220001 | 2 x 2 x 1 | 10.3 | 76.3 | 138 |
| 50700320001 | 3 x 2 x 1 | 10.6 | 116.1 | 187 |
| 50700420001 | 4 x 2 x 1 | 12 | 167.3 | 254 |
| 50701020001 | 10 x 2 x 1 | 17.7 | 636.3 | 808 |
