REACH | RoHS | CE
Applications

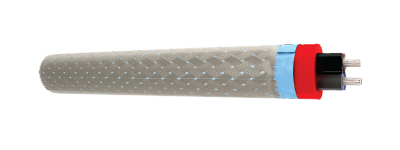

These are silicone multicore cables with galvanized steel braiding for robust
application.
These cables are used in the areas having large band of extreme
temperatures and can be used in the areas with increased mechanical stress.
They
are especially used in steel production industries, cement industries, glass
industries, aviation industries, ship buildings, etc.
Standards
Adapted to DIN VDE 0250 part 1 and part 816.
Technical Data
Voltage Rating : UO / U - 300 / 500V
Test Voltage
: 2000V
Temperature Range : -50°C to +180°C (up to
+ 220°C for short time)
Temperature Limit at the Conductor : In
operation +180°C
Insulation Resistance : Min. 200 MΩ x
km
Minimum Bending Radius : Flexing 10 x cable ø. Fixed
Installation 5 x cable ø
Cable Construction
Tinned copper conductor to Cl. 5, EN 60228.
Silicone core insulation.
Core
identification to DIN VDE 0293 - 308 colour coded or black cores with continuous
white numbers.
For 2 - cores brown, blue.
For 3 - cores and above cable
provided without protective conductor.
For 6 - cores and above all black cores
with number coding.
Cores stranded in layers with optimal lay - length.
Outer
jacket of Silicone.
Jacket colour - red brown.
Glass fibre tape over the
jacket.
Galvanised steel wire outer braiding.
Cable Construction
Galvanised steel braid over the sheath protects against the external mechanical
damages;the cable has better durability in harsh environments and applications
compared to the conventional silicone cables.ö
Advantages :
Hardly changes of dielectric strength and the insulation resistance also at high
temperatures, high ignition or flash point, in case of fire, forms an insulating
layer of SiO2.
Resistant to : High molecular oils, fats from
vegetables and animals, alcohols, plasticisers and clopenes, diluted acids, dyes and
salt dissolution, oxidation substances, tropical influences and weather, lake water,
oxygen and UV.
Halogen - Free : According to IEC 60754 -
2.
Behavior in Fire : Flame propagation test according to EN
60332 - 1 - 2.
Cable Design Parameters
Part Number | Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) |
---|---|---|---|---|
80400201075 | 2 x 0.75 | 7.6 | 13 | 94 |
80400311075 | 3 x 0.75 | 8 | 19.6 | 102 |
80400411075 | 4 x 0.75 | 8.6 | 26.1 | 121 |
80400511075 | 5 x 0.75 | 9.3 | 32.6 | 134 |
80400711075 | 7 x 0.75 | 10.3 | 45.6 | 159 |
80400200001 | 2 x 1 | 7.8 | 17.4 | 103 |
80400310001 | 3 x 1 | 8.2 | 26.1 | 112 |
80400410001 | 4 x 1 | 8.9 | 34.8 | 131 |
80400510001 | 5 x 1 | 9.6 | 43.5 | 148 |
80400710001 | 7 x 1 | 10.6 | 60.8 | 180 |
80400201105 | 2 x 1.5 | 8.7 | 25.5 | 124 |
80400311105 | 3 x 1.5 | 9.2 | 38.2 | 142 |
80400411105 | 4 x 1.5 | 9.9 | 50.9 | 162 |
80400511105 | 5 x 1.5 | 10.7 | 63.7 | 189 |
80400711105 | 7 x 1.5 | 11.9 | 89.1 | 229 |
80401211105 | 12 x 1.5 | 15.3 | 152.8 | 355 |
80400201205 | 2 x 2.5 | 10 | 42.4 | 167 |
80400311205 | 3 x 2.5 | 10.6 | 63.7 | 191 |
80400411205 | 4 x 2.5 | 11.5 | 84.9 | 224 |
80400511205 | 5 x 2.5 | 12.5 | 106.1 | 260 |
80400711205 | 7 x 2.5 | 13.9 | 148.5 | 321 |
80400200004 | 2 x 4 | 11.8 | 67.5 | 234 |
80400300004 | 3 x 4 | 12.5 | 101.2 | 269 |
80400400004 | 4 x 4 | 14 | 135 | 329 |
80400500004 | 5 x 4 | 15.1 | 168.7 | 385 |
80400200006 | 2 x 6 | 14.2 | 101.2 | 324 |
80400300006 | 3 x 6 | 15 | 151.8 | 376 |
