REACH | RoHS | CE
Application
These are halogen free cables used as data and control cable in machinery. The high
level of screening ensures a high degree of interference protection.
The special
inner sheath aids to the increase in flexibility for robust application. Such cables
can also be used for outdoor applications for the permitted temperature range.
Technical Data
Standard : Adapted to EN 50525-2-51
Nominal Voltage
: UO / U 300 / 500V
Insulation Resistance : Min.
20 GΩ x cm
Temperature Range : Flexing -40°C to +90°C. Fixed
installation -50°C to +90°C
Minimum Bending Radius : Flexing 15
x cable ø. Fixed installation 6 x cable ø
Test Voltage :
Core/core: 4000V. Core/screen: 2000V

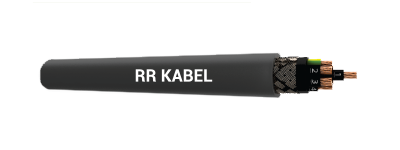

Cable Construction
Bare copper, fine wire conductors according to EN 60228 cl. 5.
Core insulation of
TPE.
Black core with continuous white numbering to DIN VDE 0293.
Green/yellow
earth core in outer layer (3 cores and above).
Cores stranded in layers with
optimal lay-length.
TPE inner sheathed.
Tinned copper braided
screen.
Special polyurethane outer sheath (PUR).
Sheath colour : Grey (RAL
7001).
Properties
Extensively oil resistant.
Abrasion and notch resistant.
Low adhesive
surface.
Resistant to hydrolysis and microbes.
Halogen free and flame
retardant to EN 60332-1-2.
UV resistant to ASTM G 154.
To optimise the EMC
features we recommend a large round contact of the copper braiding on both ends.
Cable Design Parameters
| Part Number | No. of Cores & Nominal Cross Sectional Area(Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|
| 040500311050 | 3G 0.5 | 8.3 | 31.1 | 83 |
| 040500411050 | 4G 0.5 | 8.8 | 37.1 | 95 |
| 040500511050 | 5G 0.5 | 9.7 | 43.3 | 114 |
| 040500711050 | 7G 0.5 | 11.2 | 53.8 | 150 |
| 040501211050 | 12G 0.5 | 13.7 | 83.1 | 226 |
| 040501811050 | 18G 0.5 | 15.7 | 114.4 | 301 |
| 040502511050 | 25G 0.5 | 18.5 | 176.0 | 430 |
| 040500201075 | 2 x 0.75 | 8.4 | 31.0 | 84 |
| 040500311075 | 3G 0.75 | 8.7 | 38.8 | 95 |
| 040500411075 | 4G 0.75 | 9.5 | 47.0 | 114 |
| 040500511075 | 5G 0.75 | 10.2 | 55.4 | 133 |
| 040500711075 | 7G 0.75 | 11.9 | 71.2 | 179 |
| 040501211075 | 12G 0.75 | 14.5 | 111.8 | 269 |
| 040502511075 | 25G 0.75 | 20.3 | 236.3 | 542 |
| 040500200001 | 2 x 1 | 8.7 | 36.2 | 93 |
| 040500310001 | 3G 1 | 9.3 | 46.3 | 111 |
| 040500410001 | 4G 1 | 9.9 | 58.3 | 131 |
| 040500510001 | 5G 1 | 10.8 | 67.6 | 154 |
| 040500710001 | 7G 1 | 12.8 | 88.2 | 213 |
| 040501210001 | 12G 1 | 15.4 | 161.2 | 332 |
| 040501810001 | 18G 1 | 17.7 | 223.2 | 448 |
| 040502510001 | 25G 1 | 21.5 | 295.9 | 637 |
| 040503410001 | 34G 1 | 23.8 | 386.0 | 799 |
| 040500201105 | 2 x 1.5 | 9.5 | 46.8 | 114 |
| 040500311105 | 3G 1.5 | 9.9 | 60.8 | 132 |
| 040500411105 | 4G 1.5 | 10.8 | 76.3 | 161 |
| 040500511105 | 5G 1.5 | 11.32 | 91.0 | 182 |
| 040500711105 | 7G 1.5 | 13.92 | 119.5 | 265 |
| 040501211105 | 12G 1.5 | 16.8 | 216.1 | 416 |
| 040501811105 | 18G 1.5 | 20 | 302.9 | 591 |
| 040502511105 | 25G 1.5 | 23.5 | 408.1 | 808 |
| 040504111105 | 41G 1.5 | 28.72 | 635.4 | 1229 |
| 040500311205 | 3G 2.5 | 11.12 | 90.9 | 178 |
| 040500411205 | 4G 2.5 | 12.32 | 115.1 | 222 |
| 040500511205 | 5G 2.5 | 14 | 159.9 | 296 |
| 040500711205 | 7G 1.5 | 16.4 | 208.5 | 402 |
| 040501211205 | 12G 2.5 | 21 | 329.4 | 648 |
Note :
* G = With green/yellow earth core
X =
Without green/yellow earth core
