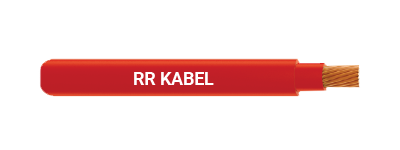

REACH | RoHS | CE
Application
These cables are ideal for use in automotive applications where higher current carrying capacity and mechnical strength are required.
Standard
Adapted to ISO 6722
Voltage Rating
60 V D.C., 25 V A.C. (Suitable for 12 Volts and 24 Volts systems)
Temperature Range (3000 Hrs)
-40°C to +105°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP according to DIN EN 13602. Conductor
construction according to ISO 6722
PVC insulation, class B to ISO 6722 PVC
sheath, class B to ISO 6722
Properties
The special cable construction, offers higher mechanical strength without compromising with the cable flexibility. The cable is suitable for rugged applications across the extreme temperature range.
Packing
Available in 100 mtrs. Longer length available in spools
Cable Design Parameters
| Part Number | Nominal Cross Sectional Area (Sq. mm) | No. of Strands | Max. Strand Diameter (mm) | Nominal Conductor Diameter (mm) | Max. DC Conductor Resistance at 20 C (Ω/km) | Nominal Insulation Thickness (mm) | Nominal Core Diameter (mm) | Sheath Thickness (mm) | Overall Diameter | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (Min.) | (Max.) | ||||||||||||||||||||
| 09020101xx31 | 0.5 | 16 | 0.21 | 1.0 | 37.1 | 0.6 | 2.1 | 0.4 | 2.7 | 3.1 | |||||||||||
| 09020102xx31 | 0.75 | 24 | 0.21 | 1.2 | 24.7 | 0.6 | 2.3 | 0.4 | 3.0 | 3.3 | |||||||||||
| 09020103xx31 | 1 | 32 | 0.21 | 1.35 | 18.5 | 0.6 | 2.5 | 0.4 | 3.2 | 3.6 | |||||||||||
| 09020104xx31 | 1.5 | 30 | 0.26 | 1.7 | 12.7 | 0.6 | 2.8 | 0.5 | 3.7 | 4.1 | |||||||||||
| 09020105xx31 | 2 | 40 | 0.26 | 2.0 | 9.42 | 0.6 | 3.0 | 0.5 | 3.9 | 4.3 | |||||||||||
| 09020106xx31 | 2.5 | 50 | 0.26 | 2.2 | 7.6 | 0.7 | 3.5 | 0.5 | 4.3 | 4.8 | |||||||||||
