REACH | RoHS | CE
Application
For power circuits in machine cabling power circuits for electrical equipment's used in automation engineering. In dry damp or wet interiors with normal mechanical stress conditions For outdoor usage within the permitted range of temperature.
Technical Data
Standard : Based on EN 50525-2-51
Nominal Voltage
: UO / U 600 / 1000V
Insulation Resistance
: Min. 20 GΩ x cm
Temperature Range : Flexing -5°C
to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius
: Flexing 7.5 x cable ø. Fixed installation 4 x cable ø
Test
Voltage : Core/core: 4000V. Core/screen: 2000V

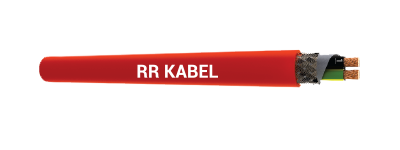

Cable Construction
Bare copper, fine wire conductors according to EN 60228 Cl. 6,
PP(polypropylene)
core insulation.
Cores are twisted together with shorter lay length.
Non woven
wrapping.
Tinned copper braiding.
Special PVC TM5 outer sheath to EN
50363-4.1
PVC orange (RAL 2003).
Properties
Flame retardant according to EN 60332-1-2
Extensively Oil resistant
PP
insulation ensures low mutual capacitance, lower dielectric loss, low screen
interference currents.
Low adhesive surface
SERVO FD 75781-CY is also
available with UV resistance property as SERVO FD 75781-CY UV.
Kindly add 'UV'
after the part no. for UV resistant cable.
UV resistant to ASTM G 154.
Cable Design Parameters
| Part Number | No. of Cores & Nominal Cross Sectional Area(Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx. Cable Weight (kg/km) |
|---|---|---|---|---|
| 041000411105 | 4G 1.5 | 9.8 | 74.3 | 130 |
| 041000411205 | 4G 2.5 | 11.9 | 113.8 | 205 |
| 041000410004 | 4G 4 | 13.5 | 169.7 | 286 |
| 041000410010 | 4G 10 | 19.7 | 428.0 | 641 |
| 041000410016 | 4G 16 | 23.9 | 661.4 | 931 |
| 041000410035 | 4G 35 | 33.3 | 1386.2 | 1808 |
| 041000410050 | 4G 50 | 38.3 | 1937.2 | 2476 |
Note :
* G = With green/yellow earth core
