REACH | RoHS | CE
Application
The high level of screening reduces substantially the effects of electrical disturbances. These cables are used for data & signal transmission. These cables are integral part of instrumentation in industries for precise signal and data transmission.
Technical Data
Standard: Based on VDE 0812
Voltage grade (not for power
installation): 0.14 mm² = 350 V; >/= 0.25 mm² =
500V
Insulation Resistance: Min. 20 GΩ x
cm
Temperature Range: Flexing -5°C to +70°C. Fixed installation
-30°C to +70°C
Minimum Bending Radius: Flexing 15 x cable ø.
Fixed installation 6 x cable ø
Test Voltage: Up to 0.25
mm²: 1200 V; > 0.34 mm² : 1500 V.
Capacitance
(approx. Value)
Up to 0.34 mm²
C/C = 120 nF/km. C/S = 160 nF/km
0.5 mm² to
1.5 mm²
C/C = 160 nF/km. C/S = 240 nF/km
Inductance: Approx.
0.65 mH/km

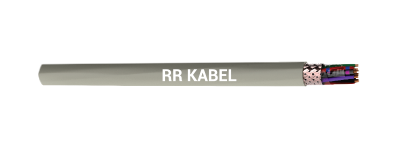

Cable Construction
Bare copper, fine wire conductors stranded according to DIN VDE 0295/ EN 60228 cl. 5,
Conductor make-up for
0.14 mm² = 18 x 0.1 mm.
0.25 mm² = 14 x 0.15
mm.
0.34 mm² = 19 x 0.15 mm.
Special PVC core insulation TI2, to EN 50363-3.
Colour coded to DIN 47100 (Refer table no. 2-1).
Cores stranded in pair with
optimal lay-length.
Cores stranded in layers with optimal lay-length.
Tinned
copper braided screen, approx 85% coverage.
Special PVC outer sheath TM2, to EN
50363-4.1.
Sheath colour grey (RAL 7032).
Properties
PVC self-extinguishing and flame retardant according to EN 60332-1-2.
The twisted
pair construction further reduces crosstalk and electromagnetic interferences,
enhancing the signal transmission characteristics
Cable Design Parameters
| Part Number | No. of Pairs & Nominal Cross Sectional Area (Sq. mm) | Approx. Cable Diameter (mm) | Approx. Copper Weight (kg/km) | Approx Cable Weight (kg/km) |
|---|---|---|---|---|
| 50400221014 | 2 x 2 x 0.14 | 5.4 | 14.6 | 38 |
| 50400321014 | 3 x 2 x 0.14 | 5.5 | 17.3 | 43 |
| 50400421014 | 4 x 2 x 0.14 | 6 | 21.5 | 52 |
| 50400621014 | 6 x 2 x 0.14 | 6.9 | 29.2 | 68 |
| 50400821014 | 8 x 2 x 0.14 | 7.6 | 36.2 | 82 |
| 50401021014 | 10 x 2 x 0.14 | 8.2 | 43.3 | 97 |
| 50401221014 | 12 x 2 x 0.14 | 8.8 | 50 | 110 |
| 50401621014 | 16 x 2 x 0.14 | 9.8 | 63.9 | 138 |
| 50402021014 | 20 x 2 x 0.14 | 10.7 | 75.4 | 162 |
| 50402521014 | 25 x 2 x 0.14 | 11.7 | 92.1 | 195 |
| 50400221025 | 2 x 2 x 0.25 | 6.6 | 22 | 55 |
| 50400321025 | 3 x 2 x 0.25 | 6.7 | 26.8 | 64 |
| 50400421025 | 4 x 2 x 0.25 | 7.4 | 33.5 | 78 |
| 50400621025 | 6 x 2 x 0.25 | 8.6 | 45.6 | 104 |
| 50400821025 | 8 x 2 x 0.25 | 9.6 | 57.4 | 129 |
| 50401021025 | 10 x 2 x 0.25 | 10.5 | 69.4 | 154 |
| 50401221025 | 12 x 2 x 0.25 | 11.3 | 80.8 | 177 |
| 50401621025 | 16 x 2 x 0.25 | 12.7 | 102.8 | 223 |
| 50402521025 | 25 x 2 x 0.25 | 15.3 | 151.7 | 322 |
| 50400221034 | 2 x 2 x 0.34 | 6.8 | 25.9 | 60 |
| 50400321034 | 3 x 2 x 0.34 | 6.9 | 32.2 | 71 |
| 50400421034 | 4 x 2 x 0.34 | 7.6 | 40.4 | 87 |
| 50400621034 | 6 x 2 x 0.34 | 8.9 | 56.5 | 117 |
| 50400821034 | 8 x 2 x 0.34 | 9.9 | 71.8 | 146 |
| 50401021034 | 10 x 2 x 0.34 | 10.8 | 87 | 174 |
| 50401221034 | 12 x 2 x 0.34 | 11.6 | 101.2 | 200 |
| 50401621034 | 16 x 2 x 0.34 | 13 | 130.7 | 254 |
| 50402521034 | 25 x 2 x 0.34 | 15.8 | 195.1 | 371 |
| 50400221050 | 2 x 2 x 0.5 | 7.8 | 35.3 | 78 |
| 50400321050 | 3 x 2 x 0.5 | 7.9 | 44.7 | 94 |
| 50400421050 | 4 x 2 x 0.5 | 8.8 | 56.1 | 116 |
| 50400621050 | 6 x 2 x 0.5 | 10.3 | 78.6 | 158 |
| 50400821050 | 8 x 2 x 0.5 | 11.5 | 101 | 199 |
| 50401221050 | 12 x 2 x 0.5 | 13.6 | 143.3 | 276 |
| 50401621050 | 16 x 2 x 0.5 | 15.4 | 186.1 | 353 |
| 50400221075 | 2 x 2 x 0.75 | 8.3 | 45.6 | 92 |
| 50400321075 | 3 x 2 x 0.75 | 8.4 | 59.6 | 113 |
| 50400421075 | 4 x 2 x 0.75 | 9.4 | 76.4 | 141 |
| 50400521075 | 5 x 2 x 0.75 | 10.2 | 92.5 | 168 |
| 50400621075 | 6 x 2 x 0.75 | 11 | 108.7 | 195 |
| 50400821075 | 8 x 2 x 0.75 | 12.3 | 140.9 | 248 |
| 50401221075 | 12 x 2 x 0.75 | 14.6 | 202 | 348 |
| 50400220001 | 2 x 2 x 1 | 9.1 | 57 | 112 |
| 50400320001 | 3 x 2 x 1 | 9.3 | 75.7 | 139 |
| 50400420001 | 4 x 2 x 1 | 10.3 | 97.9 | 175 |
| 50400520001 | 5 x 2 x 1 | 11.3 | 118.7 | 209 |
