REACH | RoHS | CE
Application

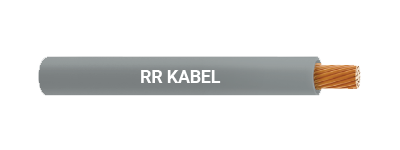

These are standard wall auto cables with cold resistant properties and increased flexibility
Standard
In accordance to ISO 6722-1
Temperature Range (3000 Hrs)
-50°C to +105°C
Cable Construction
Soft annealed electrolytic copper Cu-ETP1 according to DIN EN 13602, bare conductor construction according to ISO 6722-1 Soft PVC insulation cold-resistant
Packing
Available in 100 mtrs. coils. Longer length available in spools.
Special Properties
Cold bending test acc. to ISO 6722-1 at -50°C
Short-term and long term ageing
according to ISO 6722-1, Class B.
Cable Design Parameter
|
Nom. Cross-Section (mm²) |
No. of Strands |
Max. Strand Diameter (mm) |
Max. Conductor Diameter (mm) |
Max. DC Conductor Resistance at 20oC (Ω/km) |
Nominal Insulation Thickness (mm) |
Overall Diameter (mm) |
Approx. Weight (Kg/Km) |
|
|
Max. |
Tolerance |
|||||||
|
0.5 |
28 |
0.16 |
1.1 |
37.7 |
0.6 |
2.3 |
-0.3 |
9.0 |
|
0.75 |
42 |
0.16 |
1.3 |
25.1 |
0.6 |
2.5 |
-0.3 |
12.0 |
|
1.0 |
57 |
0.16 |
1.5 |
18.8 |
0.6 |
2.7 |
-0.3 |
15.0 |
|
1.5 |
84 |
0.16 |
1.8 |
12.7 |
0.6 |
3 |
-0.3 |
20.0 |
|
2.5 |
140 |
0.16 |
2.3 |
7.54 |
0.7 |
3.6 |
-0.4 |
32.0 |
